2,266 Litre Full Vacuum Scrape Wall Jacketed Pan with 2 x High Shear Homogenisers

Full vacuum cooking vessel with scrap wall agiator contra rotating blades & 2 x high shear homogenisers.

Working pressure 1.1 Bar

2,000 Litre 2011 Cream Jacketed Cream Aging Tank

Standing on 4 legs with gate agitator and CIP spray ball & top manway

2 x tanks available

25,000 Litre 316 Stainless Steel insulated storage tank

25,000 Litre 316 Stainless Steel insulated storage tank

New Manual Mobile CIP Sets Single or Twin Tank

With hygiene being essential for any food production facility to ensure there is no contamination of the product nor the quality of the product is effected, these CIP units have been designed where the need for cleaning in small plants where a high level of automation is not required, but reducing bacteria and elimination of impurities are still required.

Design & Features

• One AISI 316 insulated tank (300L) intended for preparation of cleaning solutions.
• Option with an AISI 304 tank (500L) for the recovered water.
• Hyginox SE pump (2.2kW).
• AISI 316 collectors with manually operated butterfly valves.
• AISI 304 frame with wheels.
• Pressure gauge at the pump outlet.
• Enclosed starter and pump protection.

Technical specifications

• Cleaning of tanks of up to 3000L
• Cleaing solution flow 10000 L/h
• Cleaning solution pressure 2 bar

Options

• Piston pump for dosing of concentrates.
• Electric heaters inside the tank.
• Temperature control in the cleaning solution tank.
• St.St. control panel.
• Tanks of 200L and 500L for clenaing of
• 2000L and 5000L tanks respectively

2003 3 Tank Fully Automatic Single Channel CIP Set

Skid Mounted 3 Tank Plc controlled Single Channel CIP Set Manufactured in 2003

Comprising 4,750 Litre Stainless Steel Water Buffer Tank, 3,350 Litre Stainless Steel Rinse Tank, 3,350 Stainless Steel Detergent Make Up & Recovery Tank.

2 x 20,000 Litre Per Hour Centrifugal Pumps & Diaphragm Doing Pump.

HMI Panel with Scarda Control.

Electric 250 Litres per Hour Skid Mounted Continious Pasteuriser

The MIM range of compact electrical pasteurisers has been designed to carry out the thermal treatment of milk and its by-products, soft-drinks and juices. The objective is to eliminate the pathogenic micro-organisms through the application of high temperature during a short period of time.

Pasteurisation unit made up of:

• Heat exchanger with 0.5mm plates in AISI 316 and gaskets in NBR, frame in AISI 304.
• Centrifugal pump INOXMIM FL31CI for milk feed.
• Food-grade hydraulic circuit DIN11851 with orbital welding.
• Holding tube for maintaining temperature.
• Divert valve for non-pasteurised product, pneumatically actuated.
• By-pass system to regulate the temperature of the pasteurised product and graduate the outlet temperature of the milk.
• Manual butterfly valves with multi-position handles to operate.
• Temperature probes PT100 to control the fluid.
• Hot-water generation system: heating coils, centrifugal pump for recirculation of water INOXMIM FL20C, temperature probe PT100, water inlet valve with automatic regulation and non-return valve, safety valve, expansion vessel, pressure gauge and purge.
• Pneumatic system to regulate and operate with flow-regulating valve, filter, pressure gauge and solenoid.
• Tank of 25 litres for the preparation of cleaning solutions.
• CE marked control panel with:

•       7” touch screen
•           Digital thermograph with temperature register
•           USB port to extract information
•          Operation of solenoids
•          Control of pumps
•          Emergency stop
•          Led indicators
•          Switches
•          Control box on stainless AISI 304
•          Mounted on platform supported by 4 anti-vibration feet
•          Made in stainless steel AISI 304
•          Standard Voltage 3 phase / 400v / 50Hz

Options

• Different thermal cycles according to client’s requirements.
• Plate heat-exchanger of 4 sections for outlet to homogeniser, skimming machine, etc..
• Holding tube with longer retention times.
• Electrical power matched to energy requirements for specific thermal cycle.
• Materials in contact with the product stainless steel AISI 316.
• Other voltages and frequencies according to country of destination.
• A chiller unit for cold water generation can be incorporated on request.

Common services requirements:

• Compressed air: 1 Nm3/h.
• Hot water for models 250, 500 y 1000 l/h and made with the pump in the hot water generation circuit. The automatic filler valve constantly maintains the circuit full at a pressure of 1.5 bar.
• The flow of cold or glycol water (for cooling to 4°C) for models 250, 500 and 1000 l/h is 700, 1300, 2200 l/h respectively.
• Energy consumption of cold or glycol water (for cooling to 4º C) in models 250, 500 and 1,000 l/h is 3000 Frig/h, 6000 Frig/h and 12000 Frig/h respectively.

FBF 1000 Series Homogeniser

Compression Head & Homogenizing Valve

The Compression head is manufactured from a single block (easy and fast maintenance) of high quality stainless steel of a special type, with a 5 year guarantee against cracking and defects

Pumping Pistons coated with a special “Diamond Like Carbon” plating (as a standard)

Interchangeable Valve group assemblies available in special materials depending on the products to be processed

The Homogenizing valves are designed to be energy efficient, with high stability and alignment of the moving parts (impact head) due to the hydrodynamic assembly, which ensures a vibration free homogenisation

Safety valve, in sanitary execution, of spring type with replaceable shutter and seat

Motorization

The pump body is made using a thick walled premium grade high-resistance cast iron, engineered to withstand heavy loads and cancel out vibration

The crankshaft is made from a special steel, machined from a solid piece, which has been heat treated and with super-finishing of the goosenecks and complete nitriding The crankshaft is supported by robust roller bearings (with bronze bearings used only on the crank pins)

Power transmission with a double reduction stage: “V” belts/pulleys, with parallel axes reduction gear

3 phase, 4 poles, AC electric drive motor of leading Company

Lubricating plant of oil splash type. The mechanical components are in oil-bath and the correct oil level is checked by a proper inspection window installed on the front side of the machine

Structure

The structure is made from square-section pipe frame in stainless steel execution, provided with separate stainless steel panels with satin finish

Maintenance kit

Initial set of spare parts supplied with the machine include the following: full set of gaskets, a set of springs for valves and a complete safety valve set

Set of tools for ordinary maintenance

Lubrication oil

Instruction and maintenance manuals (2 copies + CD ROM)

Pasteuriser P50 - 1000E

Pasteurisers are universal devices used for the pasteurisation of milk and its thermal reproduction into dairy products such as pasteurised milk, cheese yoghurt, curd, cream, and butter. Their special design (closed pressure type) enables the thermal treatment of milk in a temperature range between 3°C and 100°C. You can choose the pasteuriser type P in different versions from 50 and up to 1000 l. The equipment is made in accordance with international standards, CE directives and the newest innovations in the dairy industry.

Advantages:

• Is made entirely of stainless steel W.Nr.1.4301.
• Is a three part insulated energy – saving construction (closed circuit heating system)
• Thermal energy for heating and cooling is exchanged directly through the coat and the bottom of the kettle, which    gives very good energy conversion efficiency.
• Because of the low energetic consumption construction of the device the volume of the heating or cooling water is very small and represents only 3-6% of the kettles useful volume.
• The pasteuriser can be adapted to different kinds of available heating energy: electricity, hot water from the boiler room and solar energy (steam is optional).
• Pasteuriser has stronger heating elements, which assure a fast process of heating.
• Energy consumptions is reduced with the use of a water pump which allows a faster exchange of energy between both of media (water and milk).
• Milk is cooled down with the water from the pipe or collector or with chilled water. Using chilled water also reduces water consumption and cooling time.
• The thermal treatment of milk can be automated with the use of a controller on which we can set, change and save all the parameters of the processes of heating and cooling.
• We can offer you a wide range of accessories that will facilitate your work and expand the usefulness of the device (different supports, elevating devices, automation of operations, temperature recorders, speed regulation of stirrer, different type of stirrers).

Basic Equipment for the Pasteuriser:

• Three-part energy saving, insulated coat of the kettle, made of stainless steel W.Nr.1.4301 (AISI 304) on a support with a mechanism for the inclination of the kettle to the outflow.
• One-part cover (with service hole) with a spring-hinge for easier lifting of the cover.
• Outflow DN 50 with a butterfly valve.
• Water circulation pump for the circulation of heating or cooling water.
• Electricmotor with 25 rpm for the stirrer.
• Control panel with basic electronic regulation of the heating temperature (up to 85°C).
• Temperature sensor in the medium.
• Electric connection: 220V 1N 50Hz or 400V 3N 50Hz.

800 Litre Stainless Steel Pressure Rated Transit Tanks

With Fork Lift Moving Points

14,700 Litre APV Pressure Rated Single Skin Tank with Rouser

Bright Beer Tanks with Anti Vac Valve and Pressure Relief Valve and Contents Gauge.

2 off Available in Stock

10,500ltr Shobwood St Steel Jacketed & Insulated Tank

Mounting for Agitator

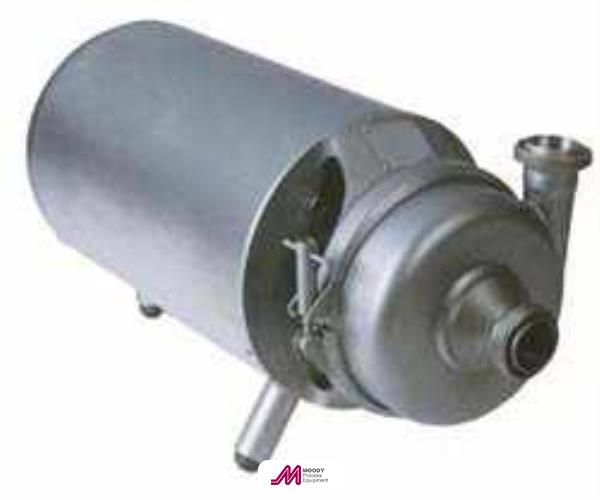

Alfa Laval MR200S Scavenge Pump

Alfa Laval MR200s Scavenge Pump With 7.5kw Motor

HOMOLAB2.20 (1.800 bar)

Homolab2.20

• 20 l/h (50 Hz), 24 l/h (60 Hz)

• Double homogenizing stage

• 1st stage adjustable up to 1.800

bar (150 Mpa)

• 2nd stage adjustable up to 150

bar (15 Mpa)

• Nr. 2 pumping pistons

500 Litre Single Skin Transi Tank

Technical features: - Palletised tank for storing and internal handling. - Shaped base with fork truck slot for a pallet truck - Bottom with a deep drawn shaped discharge to grant full product discharge - 304 Stainless steel cold rolled 2b finish - Cold forged bottom covers with optimised shape, minimum thickness 1.5mm - Robotized TIG welding process - Pickled and passivated seams - Bath galvanised mild steel palletised base - Stainless steel ring welded to the tanks and screwed to the base - Max hydraulic test pressure: 2.0 bar (200Kpa) - Max working pressure: 0.5 bar (50 Kpa) ----- Equipment: - 400 mm. diameter manhole - Lid with clamp closure (standard) - Butterfly outlet, diameter DN 50 (2") - 1" diameter threaded connection for safety valve - Pressure relief valve (max press. 0.5 bar) --- Optional items (upon request): - 316 Stainless Steel - Insulation - Water Jacket - Sprayball - Prop type agitator - Level gauges - Additional Connections

APV MC18 Homogeniser

At Moody Process Equipment we have over 35 years experience in the reconditioning of APV homogenisers. We understand that our customer's operate differently and have very different margins therefore we now offer 3 different options, see below: -

Option 1 - "Sold as seen" - Complete machine - No guarantees

Option 2 - "Serviced" - Complete machine with oil change, seals changed and tested for 2 hours - Guaranteed Start Up

Option 3 - "Reconditioned" - Fully reconditioned engine and cylinder head - 12 months warranty offered

For further details please contact Mark 01777 717546

Refrigerated Milk Tank G4 550 Ltr

Description: Inner tank and outer casing made of AISI 304 stainless steel Total primary surface evaporator with maximum yield Very thick insulation by means of non-polluting polyurethane foam Inner trap for emptying DN50 threaded outlet connector with plug AISI 304 stainless steel arm Stainless steel measuring stick for the measurement of the milk level Cooling System: Non-icing cooling even with low filling level Direct expansion R404A refrigerating fluid for all models Stainless steel cover Compact and easy installation Complies with ISO 5708 class BII Electric System: Computerised milk-controller system for the management of all operations: - Milk temperature check - Digital temperature display - Stirring program - Programmed start-up of the cooling system Temperature relay protection for the three-phase compressors as well as compressors inner protection Electric feeding cables with standardised plug 230V 50Hz single-phase feeding 400V three-phase feeding 50Hz + neutral Capacities of the tanks are 430 ltr, 550 ltr, 650 ltr, 800 ltr, 1000 ltr, 1200 ltr, 1390 ltr, 1600 ltr and 1880 ltr -------- For further details please contact Mark on 07970 945637

Cheese Kettle Advanced 100 Litres - 1500 Litres

• Energy saving construction - lower consumption of energy
• Faster energy transfer (circulation pump)
• Simple temperature regulation
• Electrical (EL), hot water (HW) or combined (EW) (boiler, solar, heat pump,...) heating

- the kettle has a three part insulated energy - saving construction

- energy consumption is reduced with the use of a water pump which allows a faster transfer of energy    to the milk

- control panel with a basic regulation of heating

- three-part cheese harp

- power supply 400V 3N 50Hz (EL, EW) or 230V 1N 50Hz (HW)

Quality Used Tote Bins

Various Used Tote Bins Constructed of Stainless Steel in 200 and 300 Litre Sizes

Available with Holes and Chutes, Lids & Push and Pull handles

Tote Bins Weight: 40 kg
